The standard TYN616 600V 16A SCRs series is suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities. Features: IT(RMS) = 16A VDRM/VRRM = 600V to 1000V IGT = 25mA Specifications: Average on-state current {IT(AV)} 10A Effective on-state current {IT(RMS)} 16A Non-Repetitive Peak On-state Current (ITSM) 200A Operating junction temperature range (Tj) -40 to 125°C Storage Temperature (Tstg) -40 to 150°C I2t Value for fusing (I2t) 180A2S Maximum peak reverse gate voltage (VRGM) 5V Peak gate current (IGM) 4A Package Includes: 1 x TYN616 – 600V 16A SCR Thyristor. *Product Images are shown for illustrative purposes only and may differ from actual product.

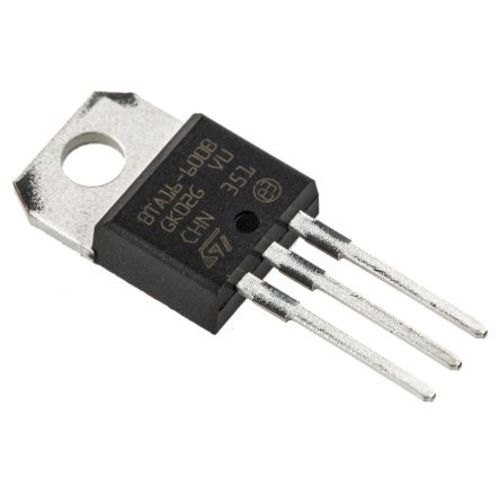

Laundry Supplies BTA16-600BRG – 600V 16A Standard Triac Thyristor Through Hole TO-220AB $ 0.29 Add to cart
