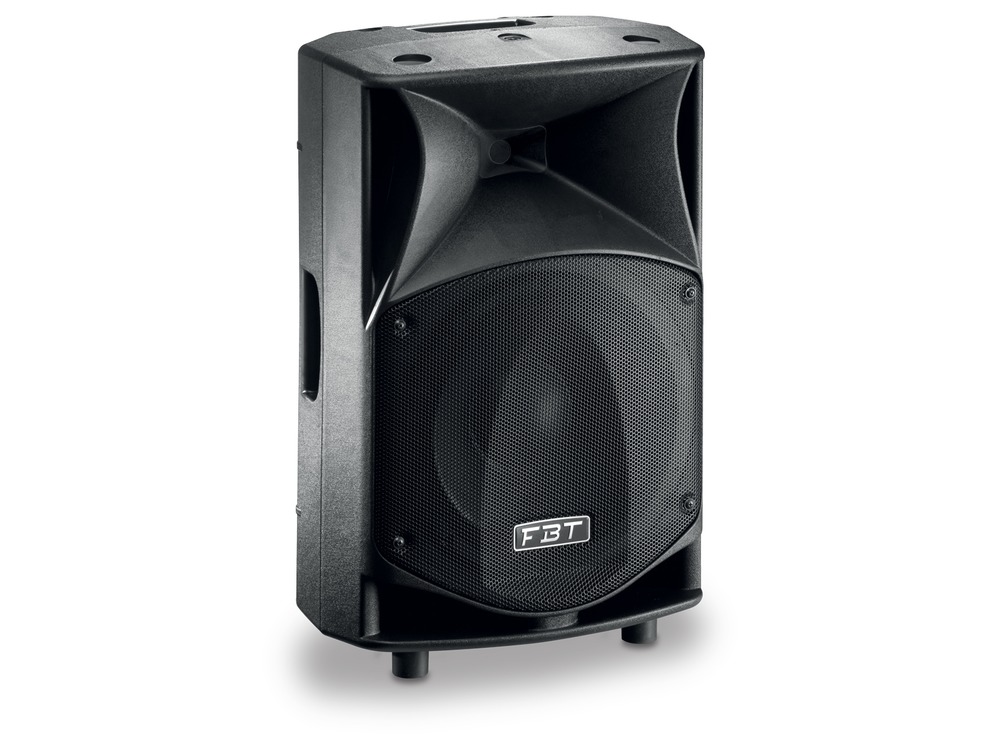

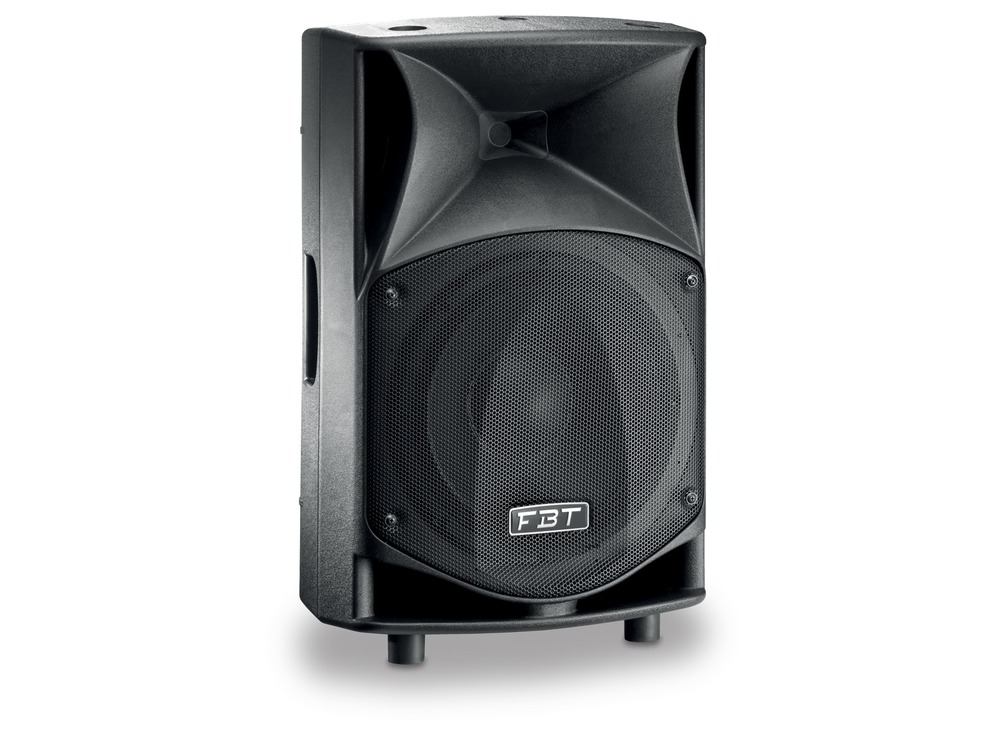

Description The FBT JMaxX 112A is a processed 2-way active loudspeaker featuring a 12″ LF woofer with a 2″ voice coil and a 1″ exit throat HF compression driver with a 1″ voice coil. It is bi-amplified with 700W RMS LF and 200W RMS HF Class D power amplifiers with a switch-mode power supply, delivering a maximum SPL cont/peak of 131 dB. The speaker includes a DSP with 4-EQ presets and is housed in an incredibly lightweight gas-injected molded polypropylene cabinet (13.8 Kg net weight). Specifications: Configuration: 2 Way Frequency response: 48Hz – 20kHz Low frequency woofer: 12″ (2″ VC) High frequency driver: 1″ (1″ VC) Maximum SPL cont/peak: 131 dB Dispersion: 90° Horizontal x 60° Vertical Built-in amplifier LF/HF: 700W/200W Dimensions: 402 x 644 x 345 mm Net Weight: 13.8kg Input connector: XLR 6.3mm Jack Control panel with: XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch. Features 2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, and wall bracket mount flange plate.
