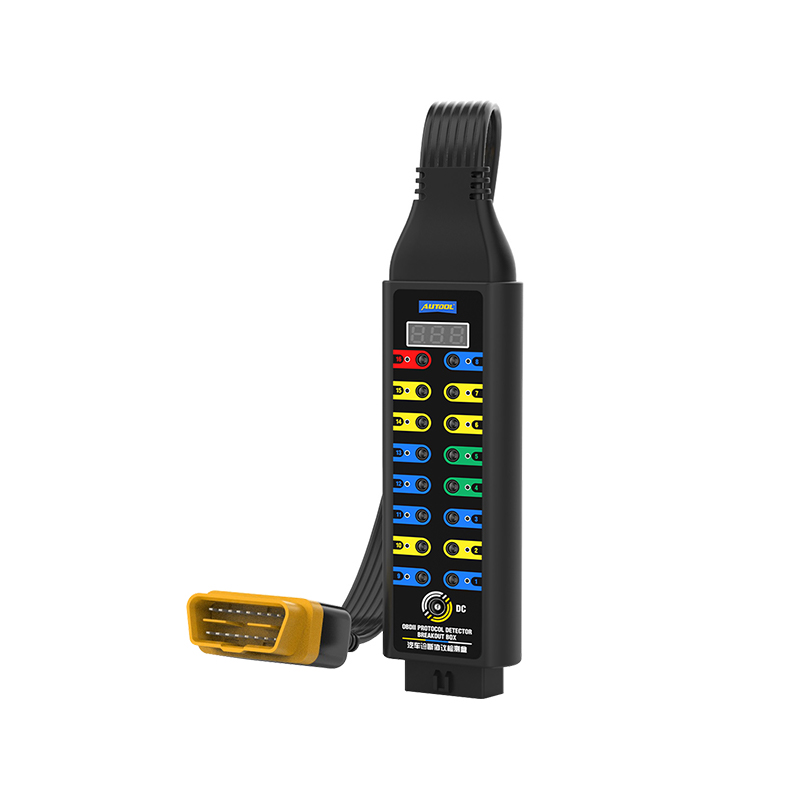

AUTOOL OBD2 Protocol Detector Breakout Box Diagnostic Connector Detector Upgraded Version AUTOOL OBD2 Protocol Checker Automotive Breakout Box Upgraded Version is an automotive tool for OBD2 diagnostic link connectors that provides easy access to the OBDII connector, real-time display of OBD2 interface voltages, and LEDs indicating power and ground conditions for easy and safe monitoring of protocol, power and ground signals. Warm Tips This product directly connects to the vehicle data link. Improper use may damage the vehicle data communication system, related circuits, or systems. When you are not sure whether your operation will cause problems, please stop using this product immediately. When you are not sure about the electrical circuit on the car, do not use a jumper to short-circuit the input jack of this product. Do not use this product to connect a load device with a power exceeding 1 ampere. Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product. Manual (Upgraded Version ) Download What Is The Difference Between AUTOOL OBD2 Breakout Box Protocol Detector? AUTOOL OBD2 Protocol Detector Auto Car Breakout Box Quick Search AUTOOL OBD2 Breakout Box Protocol Detector Upgraded Version $109.00 AUTOOL OBD2 Breakout Box Protocol Detector Basic Version $59.00 AUTOOL DM303 Diagnostic Multimeter Car Circuit Tester $189.90 AUTOOL 92PCS Automotive Circuit Test Leads Kit, Multimeter Test Leads Kit with Carrying Case, Electrical Testers Wire Connectors Adapter Cables with Alligator Clips $109.00 AUTOOL BT30 ECU Emergency Power Supply Cable Includes 3A Fuse $29.00 AUTOOL OBD2 Protocol Detector Breakout Box Upgraded Version Features: With LED Indicator: can quickly show whether the vehicle OBD2 power and ground is normal or not With 16PIN Connector: can be adapted to all cars with OBD2 interface 45cm TPU cable: with high elasticity, high flexibility, high strength features With Display: can quickly measure the OBD2 interface voltage and display on the screen. With Diagnostic Interface: when the diagnostic instrument and the car communication, can quickly connect the 16 pins of OBD2 Fully Emulates the OBD2 Interface: can be tested with a multimeter and oscilloscope Power Supply for the ECU of the Car: connects to a 12V slave device Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, we promise to resend parts for free within 3 years. Online Support Packing List
